Features:
- IP66 Rated (When closed) resistant to dust and a flow of water up to 1kg/cm2 in any direction
- IK08 Protection grade when closed - 2000kg maximum weight limit
- Maximum weight per area: 12kg/cm2
- Required opening dimensions - Screed back box 163mm x 115mm x 81mm, Raised floor back box 174mm x 125mm
- Joiner clip available to join 2 screed back boxes - Code KFA1002
- Levelling accessory - KFA1003 - assists in levelling the back box
- Replacement lid KFS2001/72 and sandwich gasket KFS2002 and lid gasket KFS2003 are available to order
- CE and UKCA certified
- Locking/opening mechanism requires a 6mm Allen key
Description:

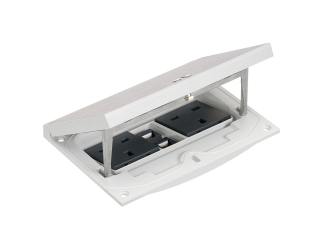

Twin socket outlet with 2no. 13amp sockets and 2no. Cat6 data sockets housed in a stainless steel finished top section with a 6mm Allen key security twist locking/opening mechanism. The top section requires a back-box. Screed type box ref: KGT100/72. Raised floor back box: KGT100RF/72. Internally the outlet is supplied with a 13amp unswitched UK socket and a Cat6 data module 22.5mm x 45mm. This space can be fitted with a range of other data socket options. (These may be ordered separately)

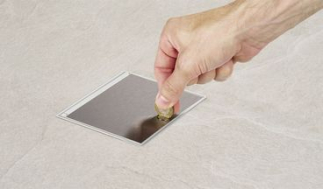

When closed the outlet achieves an IP66 rating. When open the unit is IP20 rated. The screed floor outlet sits flush with the surrounding floor finish. The raised floor version features a matching metal supporting surround trim. Internally the outlet is slightly sloped directing any liquid that has entered to outlet towards a weep hole which, in turn, is positioned over a collection reservoir within the back box. This reservoir forms part of the back boxes drainage system.
Designed for installation in hard floor areas that may require occasional wet washing, the SIMONBOX is installed in a wide range of prestigious projects which includes Airports, Stadiums, Car Showrooms, Shop floors, Kitchens and Concourse areas.
