Features:
- Circular brush design provides a concentrated seal around cables
- Large 140mm diameter brush opening
- Intergrated clamping arms lock grommet to raised floor - no additional drilling or screws required
- Strong Safety lid option available - lid can be adjusted to facilitate cables
- Deep 54mm body dresses the full depth of the panel cut out
- RoHS Compliant
Description:
GTA85N NEW Air-Block circular grommet

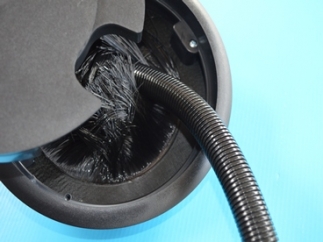

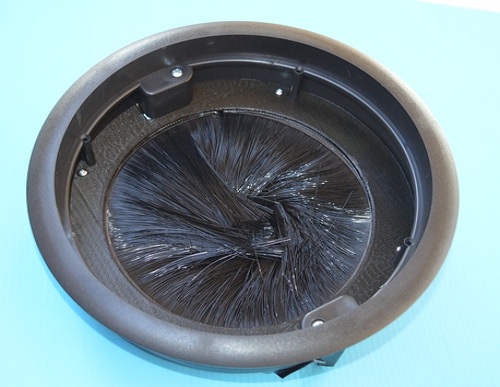

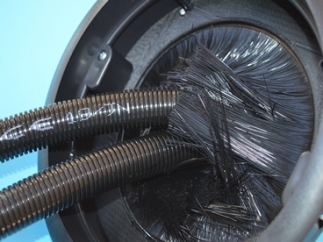

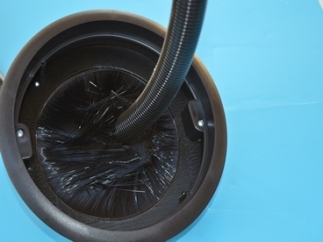

The GTA85N circular cable grommet fits into a ø209mm opening and is fitted with a recessed 140mm diameter brush sealed cable opening. Circular brush seals provide an effective air seal as the brush filaments naturally concentrate towards the centre of the circle. The bristles form an air seal sleeve aound bundled cables passing through the grommet.
This Air-Block grommet also features 2 quick action clamping arms that firmly hold the grommet in position without the need for additional drilling and screw fixings.

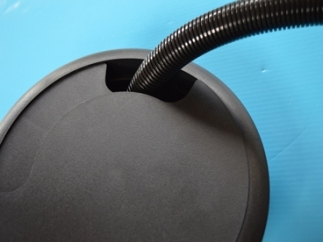

The unit can also be supplied with a safety lid which could also be used when the grommet is cabled to form a secondary air sea and protective coverl.
Dimensions
Cut out - 209mm diameter
Overall width - 230mm diameter
Sleeve Depth - 60mm
Cable Opening - Max 140mm diameter
Colour Options
Black or Grey main ring
PRICING
Note above Unit Price includes 6% import duty. Orders over £135.00 are also subject to a custom clearance charge. Both the custom clearance charge and duty will be credited to your payment. The courier will seek collection of import duty, clearnce charges and VAT on goods. If the purchaser is VAT registered, VAT should be reclaimed from HMRC.
