GT085

Dimension - Cut Out 209mm diameter
Weight - 490 gm

Price: £ 15.64

Ask A Question

Print This Page

Features:

Heavy duty load performance
360° Adjustable cable opening
Made from high strength V0 fire rated ABS compound
2no. clamping arms holds grommet firmly in position
Facility to mount power and data sockets to the grommet

Description:

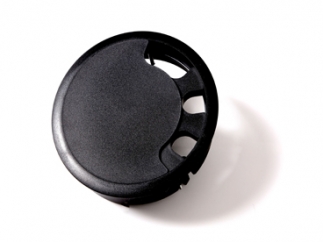

GT085 Cable Grommet

The GT085 fits a 209mm diameter access floor panel cut out. The GT085 cable grommet is designed as a heavy-duty cable grommet. The GT085 consists of 2 parts a. Outer housing ring and b. Lid. The outer housing features a wide supporting flange and 2no. clamping arms. The wide flange provides strong structural support to the grommet when subjected to heavy loads. The clamping arms hold the grommet firmly in position. The deep 40mm side wall provides protection to cables and hands from the sharp metal edges of the floor panel cut out. The wide 185mm diameter opening facilitates easy and generous access through the grommet for cabling work. The 2 part lid features a deep moulded base part with an arrangement of cable opening slots and a 360° adjustable top disc. The cable opening can then be set to perfectly seal around cables passed through the grommet.This eliminates unnecessary gaps in the cable mouth and prevents debris from entering the floor void.

The GT085 grommet is used extensively in both general office and data centre installations.
